Japanese Kongo-class (1912) battleships

Introduction

The Kongo-class battleships were built between 1911 and 1915 as battlecruisers of a British design. The lead ship of the class, Kongo (1913), was the last Japanese naval ship at that time to be built outside Japan, namely in Great Britain. At the end of the 1920s, all the ships were modernised and hence re-classified as battleships. All ships in the class were lost during World War II. Only Haruna (1915) could be salvaged but was scrapped in 1946.

Image 27681
Kongo (1913) battleship at Tateyama on November 14, 1936. Source Wilco Vermeer collection

Ships of the Kongo-class

Kongo (1913)
January 17th, 1911: laid up
May 18th, 1912: launched
August 16th, 1913: commissioned
November 21st, 1944: torpedoed
Hiei (1914)

November 4th, 1911: laid up
November 21st, 1912: launched
August 4th, 1914: commissioned
November 13th, 1942: torpedoed
Haruna (1915)
March 16th, 1912: laid up
December 14th, 1913: launched
April 19th, 1915: commissioned
June 28th, 1945: sunk
1946: salvaged and scrapped
Kirishima (1915)
March 17th, 1912: laid up
December 1st, 1913: launched
April 19th, 1915: commissioned
November 15th, 1942: sunk

History

The Kongo-class battleships were based on a British design for battlecruisers by Sir G. Thurston. For this purpose, Kongo (1913) was built in Great Britain as the last Japanese warship outside of Japan. Over the years, all four ships have been upgraded several times. The first significant reconstructions took place in the late 1920s or mid-1930s, when the battlecruisers were converted into battleships.[1][2]

The first ship of this class, Kongo (1913), was built in England by the Vickers Shipbuilding Company, whereas the other three ships were built in Japan itself and often from parts manufactured in Great Britain. The ships’ length measured 222.10 meters with a beam of 29.30 meters and a draft of 9.70 meters. The displacement varied between 31,720 tons to 32,156 tons, depending on the ship and its stage in the reconstruction program. The eight to eleven boilers heated four gas turbines, which in turn powered four propellers. This allowed the ships to reach a top speed of 30.5 knots (55.56 km/h). The main armament consisted of four double-barrelled turrets, two forward and two aft, each with two 356 mm / 45 calibre guns. The main secondary armament were fourteen single mounted 152 mm / 50 calibre guns, all equally distributed along each side of the superstructure.[1][3]

Image 27682

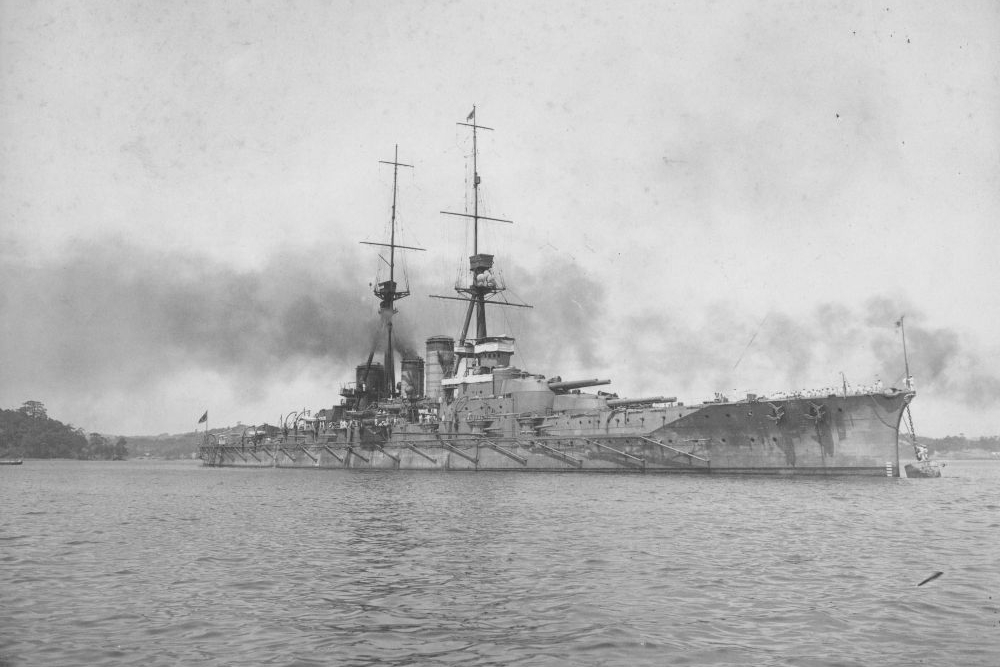

Haruna in 1916, when still a battlecruiser, off Yokosuka. Source Kure Maritime Museum

In the mid-1930s, the ships were extensively reconstructed. The length was increased to 225 m, the width to 31.7 m and the draft to 9.8 m. This was all the result of a major adjustment in the armour, among other things. The deck armour was thickened to 96.5-165mm. The ships received new boilers, doubling the capacity to 136,000 shp. The speed therefore increased to approximately 30 knots and the water displacement to approximately 36,000 tons. The armament was also adjusted several times. The main armament remained the same in calibre but was modernised. The secondary armament was reduced to eight, while heavy anti-aircraft guns were added during the Second World War. The number of lighter 25mm / 60 calibre anti-aircraft guns were increased to a total of 100 during the war. As the war progressed, the crew was also significantly expanded, from 1,100 to 1,360, and the ships were classified as battleships. Due to their high-speed capabilities, the ships were usually used as an escort for the aircraft carriers.[1][4][5]

Two ships, Hiei (1914) and Kirishima (1915), were lost in November 1942 during the Battle of Guadalcanal. Kongo (1913) was lost in November 1944 and Haruna (1915) in June 1945.

Technical specifications

 Class: Kongo-class
 Number of ships:
4
 Country:
Japan
 Type:
Battle cruisers / Battleships
 Displacement:
31,720 tonnes (Kongo) - 32,350 (Hiei)
 Length:
222.10 meter
 Beam:
29.30 meter
 Draft:
9.70 meter
Propulsion:
4 shafts
4 steam turbines
8 - 11 boilers
136,000 shp (? kW)
 Speed:
30.5 knots (55.56 km/h)
 Range:
18,520 km at ? knots (? km/h)
 Armour:
Belt: 203 - 76 mm
Deck: 152 - 38 mm
Gun turrets: 229 - 152 mm
 Armament:
4 x 2 356mm/45 calibre Type 41 or Type 43 guns
14 x 1 152mm/50 calibre Type 41 guns
4 x 2 127mm/40 calibre Type 89 anti-aircraft guns
10 x 2 25mm/60 calibre Type 96 anti-aircraft machine guns
4 - 8 x 352mm torpedo tubes
 Complement:
1,193 - 1,360 crew
